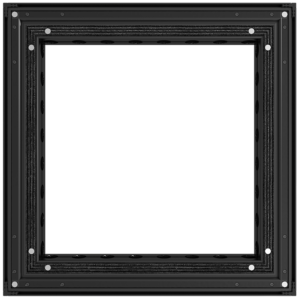

500×500

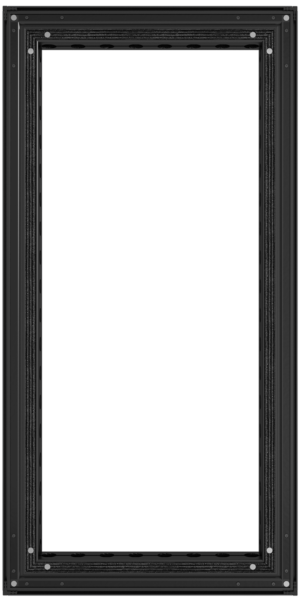

500×1000

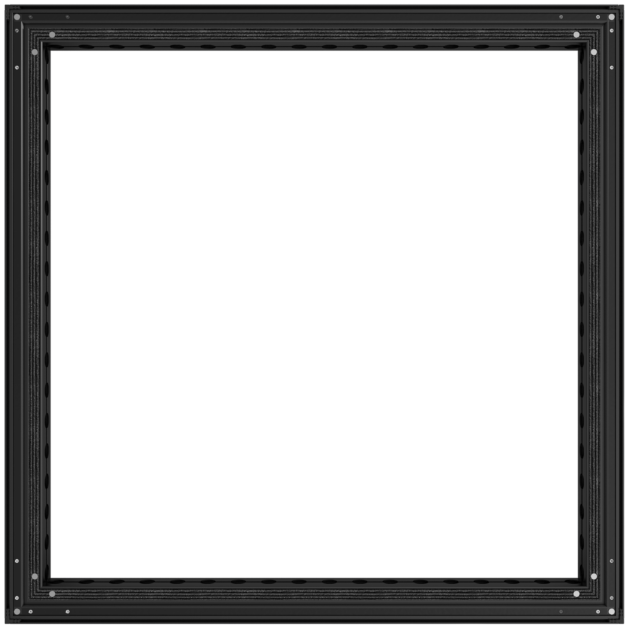

1000×1000

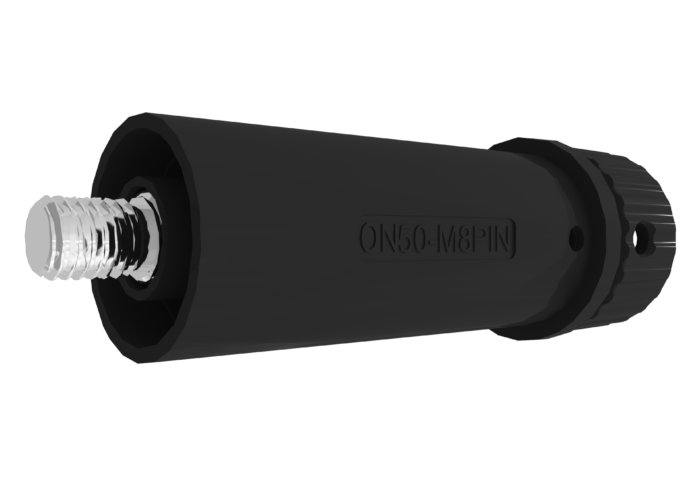

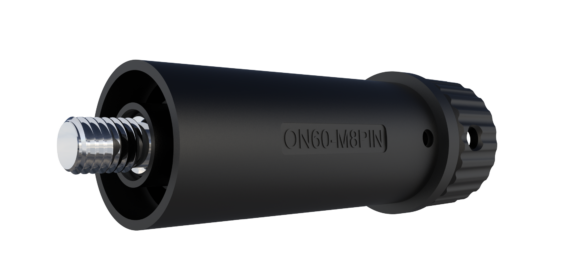

PIN50(M8/M10)

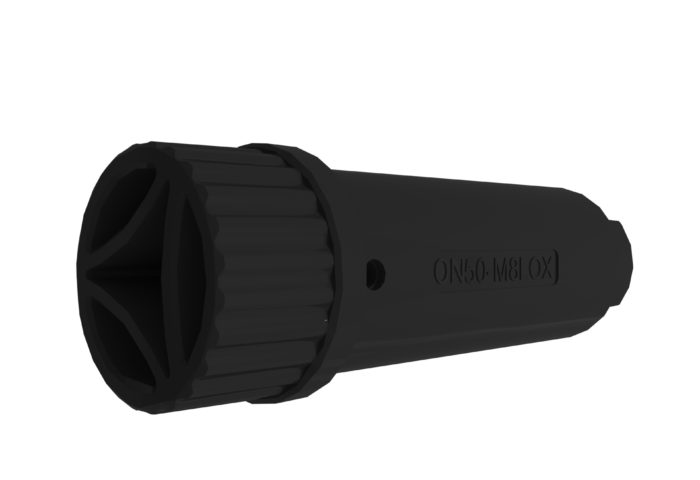

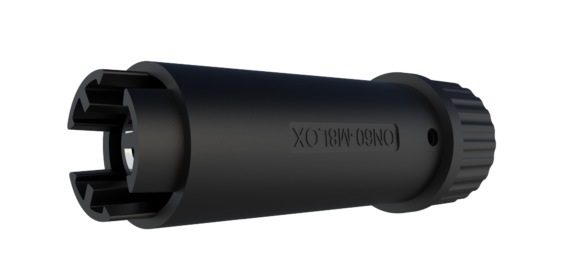

LOX50(M8)

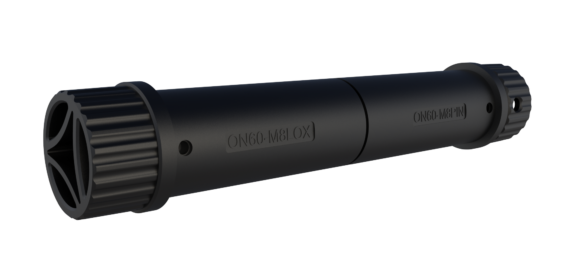

PINLOX50(M8)
PINLOX
PIN50 combine with LOX50 make PINLOX50, as a M8 screw special designed for STAQ connection
PIN50(M8)
LOX50(M8)
PINLOX50(M8)
PINLOX
PIN50 combine with LOX50 make PINLOX50, as a M8 screw special designed for STAQ connection

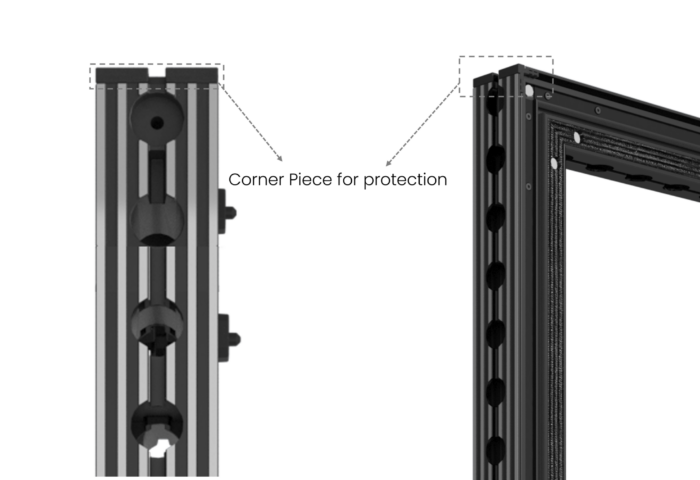

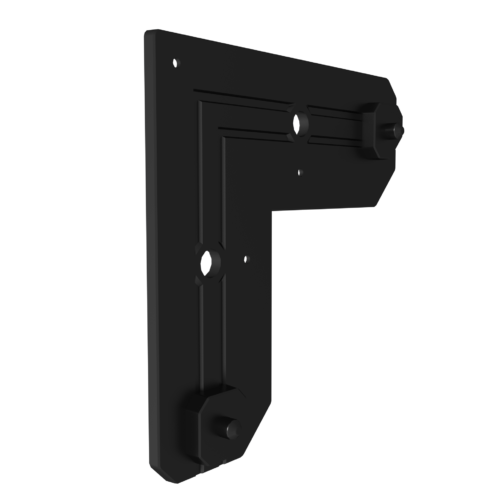

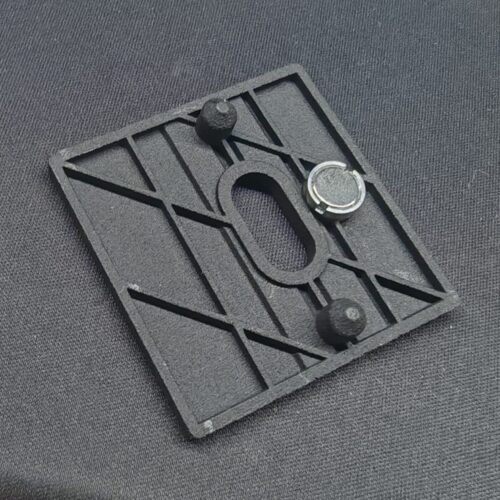

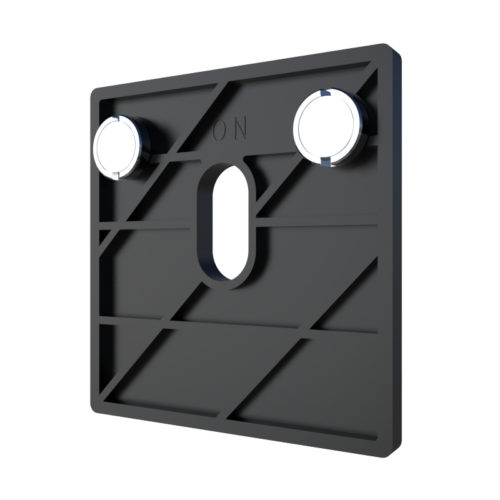

Corner Cover & Plastic Chip
T connection require the use of a corner cover and plastic chip, which are used to pad the connection and prevent misalignment.
SEG
COVER PLATE

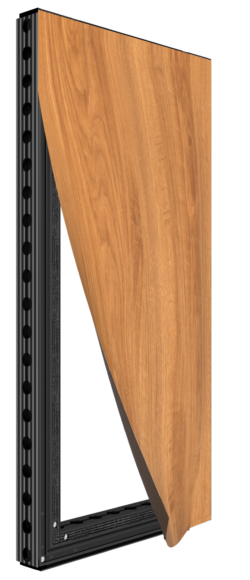

SEG function for using customizable cloth to cover the STAQ

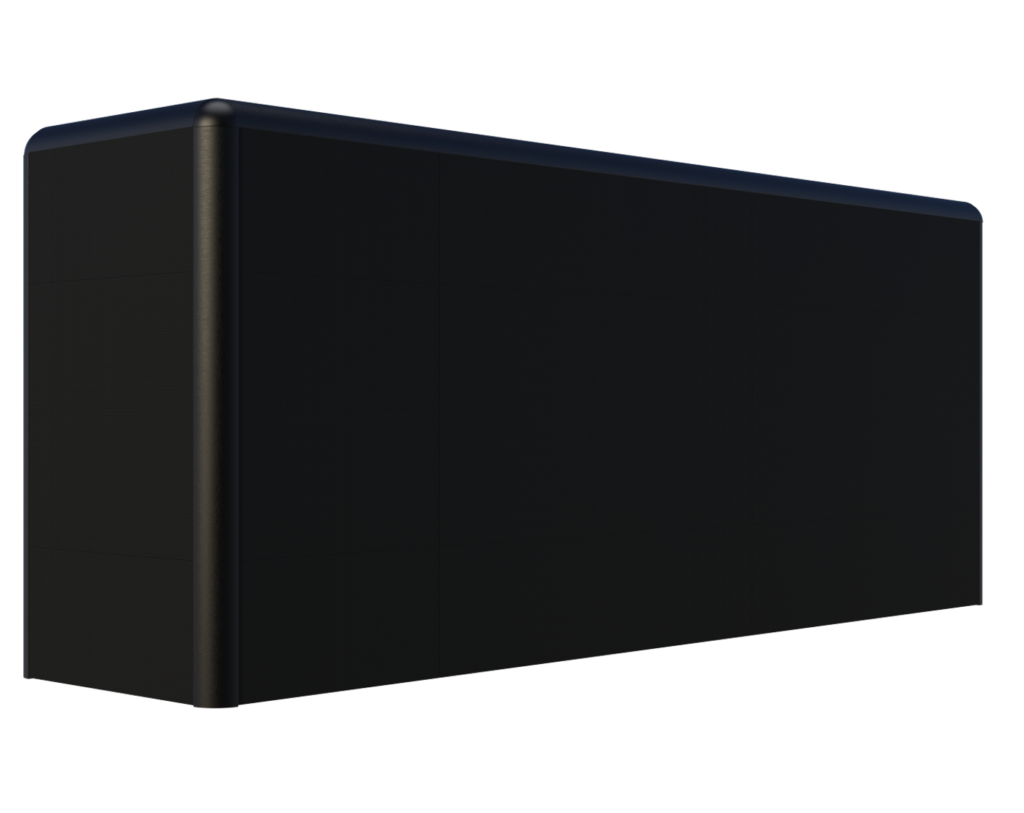

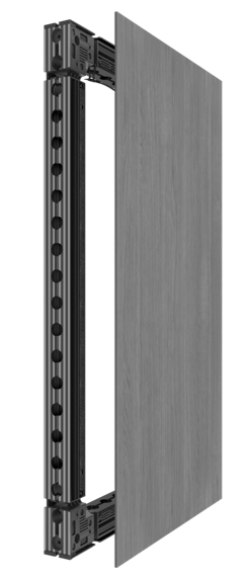

Cover Plate for covering the hole STAQ, can be customized on your demands
(either using Corner or Cover Cloth)

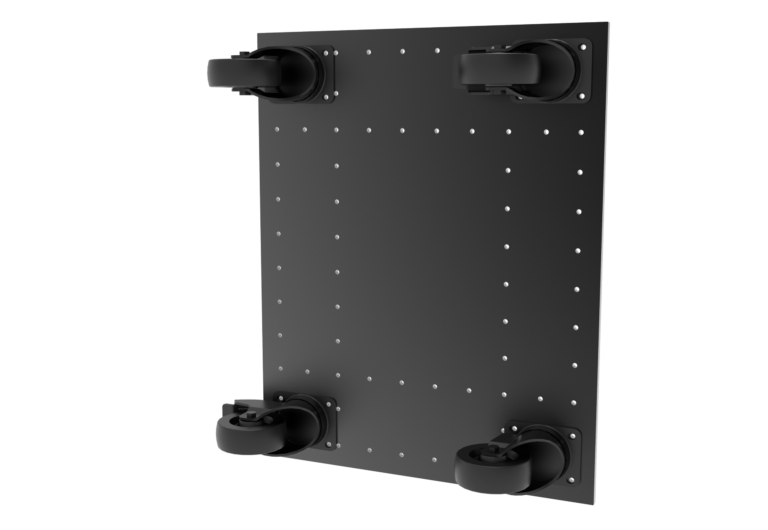

Mountings
staq50 can be combined with dedicated tools to complete some designs without the need for other tools
